The most reliable and accurate technology available
Trimble is a pioneer in construction positioning technology providing reliable, accurate solutions and improving productivity in a wide range of jobs.
Trimble and Spectra Precision® offer a comprehensive portfolio of leveling, positioning, and alignment tools and solutions for General Construction, Interior and Underground work. A complete line of construction and surveying accessories completes the portfolio.

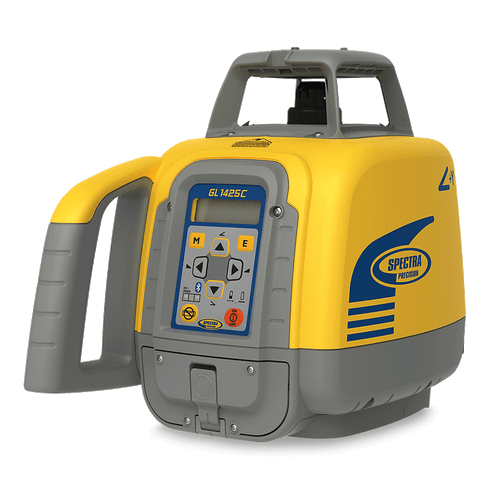

GL1425C
New, fast, better. It has all three!
The automatic self-leveling GL1425C dual grade laser is the most rugged, cost-effective laser that does three jobs - level, grade, and vertical alignment. Even in harsh job site conditions, the GL1425C delivers consistently reliable and accurate performance, enabling you to work faster (up to 900 rpm) and smarter. The GL1425C comes with Bluetooth built-in and has a dedicated Laser Remote App.
GL422N
The automatic, self-leveling Spectra Precision GL422N dual grade lasers is the most rugged, cost-effective lasers that do three jobs—level, grade, and vertical alignment. Even in harsh job site conditions, the GL422N delivers consistently reliable and accurate performance, enabling you to work faster and smarter. The rugged GL422N lasers can withstand drops of up to one meter (three feet) onto concrete and tripod tip-overs up to 1.5 meters.
GL412N
The automatic, self-leveling Spectra Precision GL412N single grade laser is the most rugged, cost-effective lasers that do three jobs—level, grade, and vertical alignment. Even in harsh job site conditions, the GL412N delivers consistently reliable and accurate performance, enabling you to work faster and smarter. The rugged GL412N laser can withstand drops of up to one meter (three feet) onto concrete and tripod tip-overs up to 1.5 meters (five feet).
GL722N
The Spectra Precision GL722 dual grade laser is one of the most advanced grade lasers on the market. The long range operation, advanced radio remote, grade matching, Planelok and Automatic Axis Alignment features mean that you can do quick but highly accurate set-ups for any grade application. With the GL722’s powerful, long range remote control, it takes one person to accurately set up and operate the grade laser. Even grade reverse is done in an instant.
LL500
The Spectra Precision LL500 Laser Level is a one-person leveling system designed for longer range measurements across your entire site. Accurate, stable and reliable, the LL500 features a 1,600 ft (500 m) working diameter which increases productivity by reducing the need for multiple setups on a large job site.
LL300N
The Spectra Precision LL300N Laser Level features a rugged design with "hard hat" rotor protection that provides superior drop and weather protection. Built to withstand severe drops of up to 3 ft (1 m) directly onto concrete, or up to 5 ft (1.5 m) when pushed over on a tripod means less downtime and cost due to damage caused by accidental drop
LL300S
A medium-range, highly accurate leveling solution, the Spectra Precision LL300S Laser Level features a rugged design with a metal sunshade that provides superior drop and weather protection (IP66). Designed for durability and reliability, the IP66 protection rating allows the Spectra Precision® LL300S to be operated in adverse environmental conditions, such as heavy rain. Mud and concrete can be washed off with a hose.
DG813
Benefitting from the latest technology developed by Spectra Precision, the DG813 delivers an unprecedented performance when laying pipes. The length of the DG813 has been reduced to make it easier to set up the lasers into tight inverts in the manhole. The DG813 has a grade range from -12% to +40% and is fully self-leveling over the entire grade range. Even the cross axis is fully compensated - providing quick set up and peace of mind that the laser will be level without having to adjust at the bottom of the invert. The DG813 works over a distance of 150m (500ft) providing full operation in a single set-up between manholes. The new RC803 remote control provides full function control and utilizes infra-red light in the pipe for up to 150 meter (500 feet) control. For “over-the-top” setups, the remote utilizes radio communications up to a distance of 130 meter (430 feet).
Flexible power options provide 40 hours operating time with NiMH rechargeable batteries and 50 hours with alkaline batteries. Alkaline batteries can be used directly at the laser without a separate battery pack. An additional car charger is available for work in remote areas.
DG613
Compact and powerful, the Spectra Precision DG613 Pipe Laser is built for efficiency, accuracy and reliability when laying pipes. The length of the DG613 has been reduced to make it easier to set up the lasers into tight inverts in the manhole. The DG613 has a grade range from -12% to +40% and is fully self-leveling over the entire grade range. Even the cross axis is fully compensated - providing quick set up and peace of mind that the laser will be level without having to adjust at the bottom of the invert.
The DG613 works over a distance of 150 meter (500 feet) providing full operation in a single set-up between manholes. The new RC803 remote control provides full function control and utilizes infra-red light in the pipe for up to 150 meter (500 feet) control. For “over-the-top” setups, the remote utilizes radio communications up to a distance of 130 meter (430 feet). Flexible power options provide 40 hours operating time with NiMH rechargeable batteries and 50 hours with alkaline batteries. Alkaline batteries can be used directly at the laser without a separate battery pack. An additional car charger is available for work in remote areas.
DG613G
Compact and powerful, the Spectra Precision DG613G Pipe Laser is built for efficiency, accuracy and reliability when laying pipes. The length of the DG613G has been reduced to make it easier to set up the lasers into tight inverts in the manhole. The DG613G has a grade range from -12% to +40% and is fully self-leveling over the entire grade range. Even the cross axis is fully compensated - providing quick set up and peace of mind that the laser will be level without having to adjust at the bottom of the invert.
The DG613G works over a distance of 150m (500ft) providing full operation in a single set-up between manholes. The new RC803 remote control provides full function control and utilizes infra-red light in the pipe for up to 150 meter (500 feet) control. For “over-the-top” setups, the remote utilizes radio communications up to a distance of 130 meter (430 feet). Flexible power options provide 30 hours operating time with NiMH rechargeable batteries. Alkaline batteries can be used directly at the laser without a separate battery pack. An additional car charger is available for work in remote areas.
